Horizon Disposable Syringe 1ml

Disposable Syringe Description

Disposable syringe is available in two types: 2-piece technology (without stopper) and 3-piece technology (with stopper). Some come with an attached needle, while others do not. They have a clear barrel with clear graduations, making it easy to measure the contents accurately. The syringe disposable comes with different types of tips: luer lock, concentric luer slip, and eccentric luer slip, and can be used with either a regular needle or a safety needle. Catheter tip syringes are used for flushing catheters, gastrostomy tubes, and other medical devices.

Disposable syringe types

Disposable syringe is available in two main types:

2-piece technology: These syringes do not have a stopper. They are commonly used for various medical purposes.

3-piece technology: These syringes come with a stopper. They are also widely used in medical settings.

Furthermore, disposable syringes can be classified based on the needle attachment:

Syringes with an attached needle: These syringes come ready for immediate use.

Syringes without an attached needle: Users can attach the desired needle type as needed.

Disposable syringe diagram

What are the parts of disposable syringe ?  Disposable syringe parts are listed as following.

Barrel: The main body of the syringe, usually the disposable syringe material of barrel is PP (polypropylene),  with measurement markings along its side.

Plunger: A movable rod inside the barrel, often the disposable syringe material of plunger is PP (polypropylene), which fits snugly inside the barrel and can be pushed or pulled to control the flow of fluid.

Disposable syringe pistons: The piston is made of rubber or a similar material (usually latex or latex free disposable syringe material of piston), that forms a tight seal with the inner walls of the syringe barrel.

Needle: A thin, hollow metal tube attached to the front end of the syringe. This is the part that goes into the body to deliver or withdraw fluids.

Cap: A protective cover that fits over the needle to prevent accidental pricks before use.

Disposable syringe tips: Syringe tips disposable are the front end of the syringe, where the needle is attached. Some syringes have a Luer lock tip, which allows different types of needles to be securely attached, while others have a Luer slip tip or catheter tip.

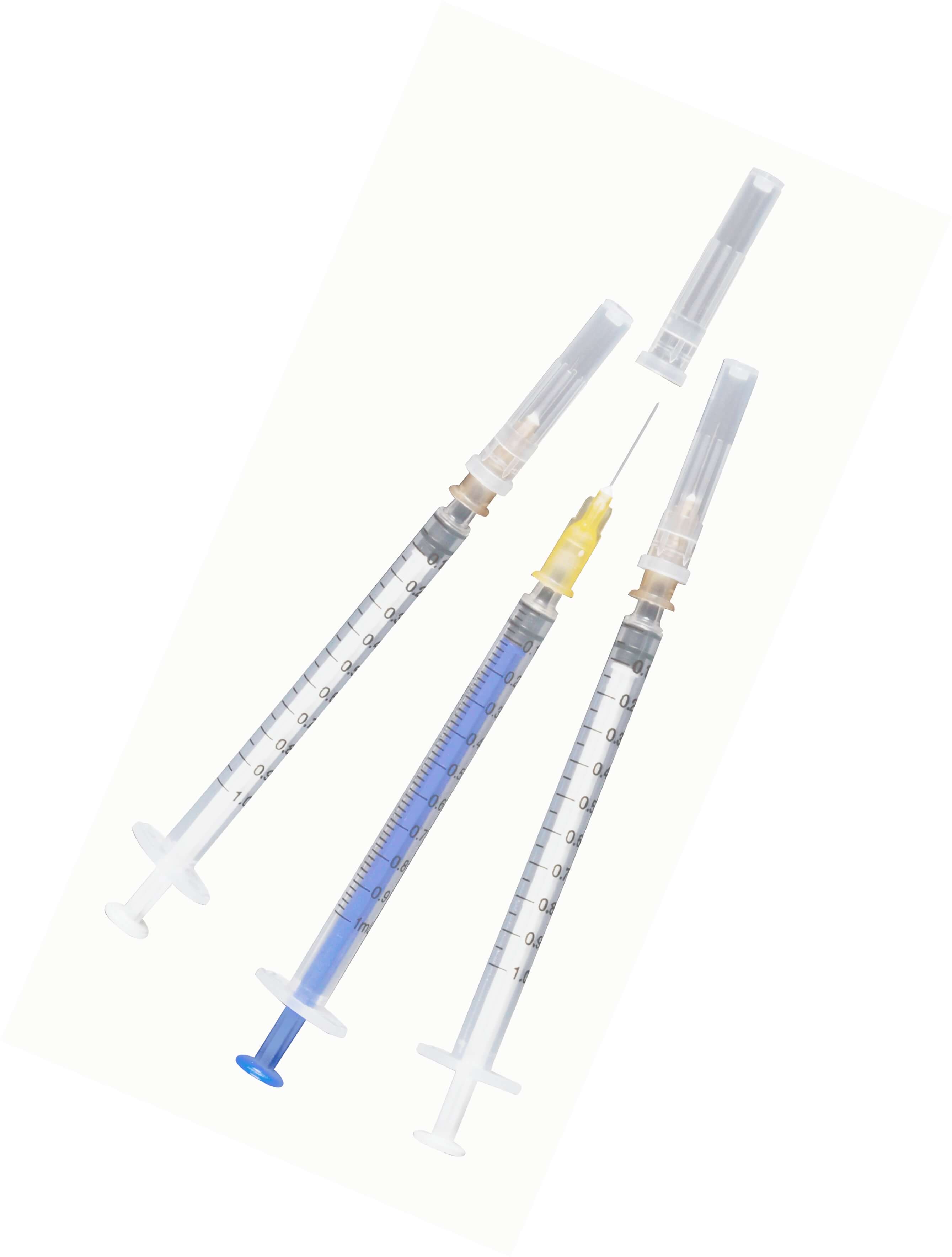

Disposable Syringe Description 1ml

A disposable syringe 1 ml is a small, single-use medical instrument used for administering liquids or medications in precise amounts. 1ml disposable syringe typically consists of a plastic barrel with clear markings in milliliters (ml) for accurate measurement and a plunger to push the liquid out of the syringe. 1 ml disposable syringe is equipped with a needle at one end, which can be used for injections or other medical purposes. Once used, the syringe is discarded, ensuring hygiene and preventing the risk of infections from cross-contamination.

Disposable Syringe 1cc Features & Advantages

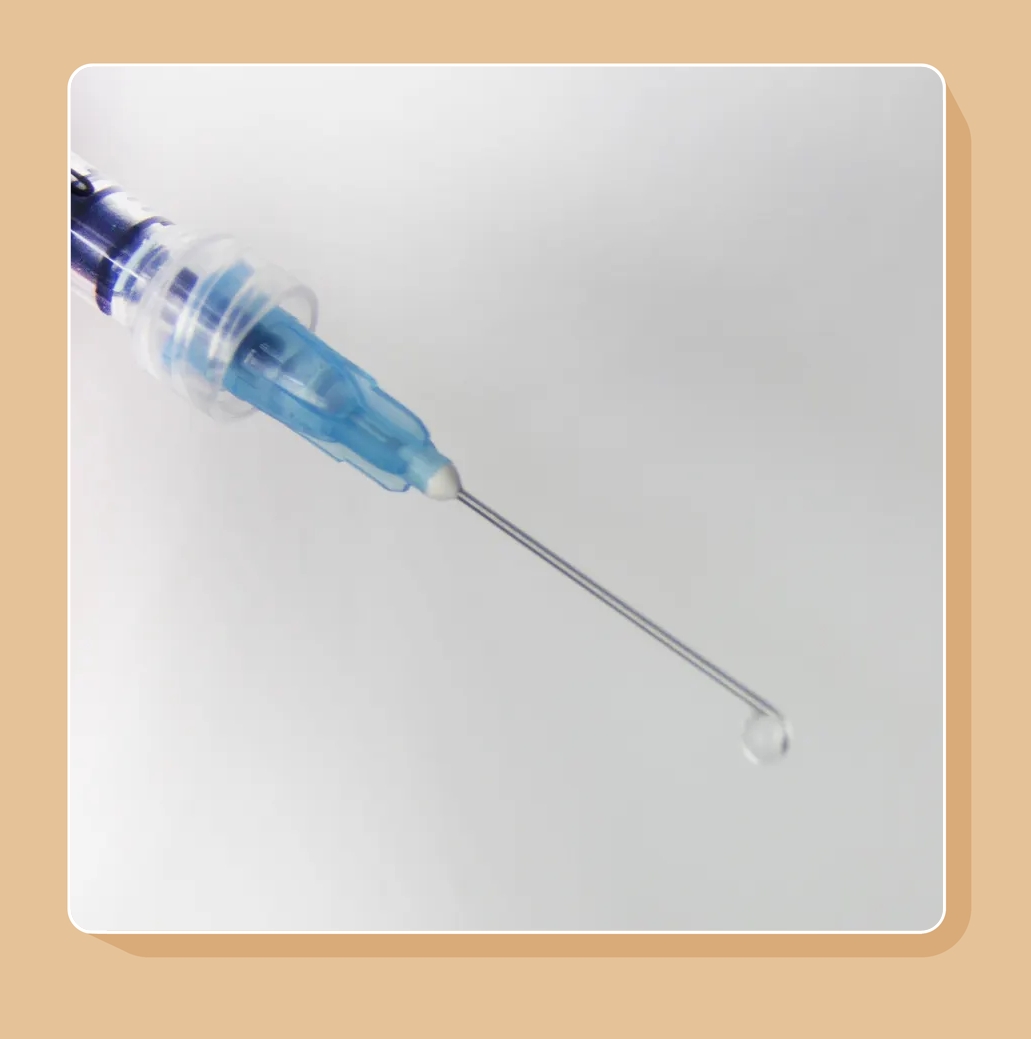

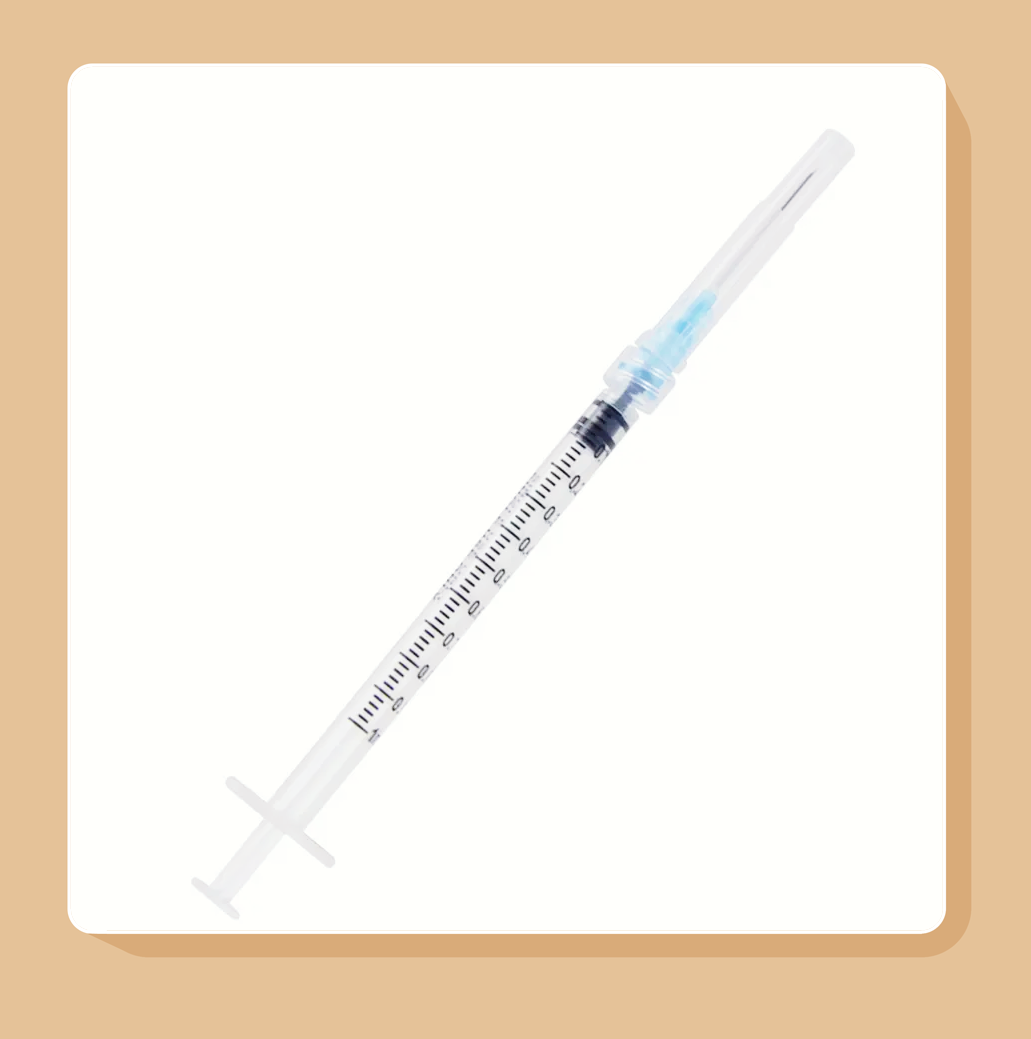

Horizon luer-lok disposable syringe 1 ml features a clear barrel with easy-to-read scale markings. The syringes have a tapered plunger rod for smooth aspiration and a secure Luer-Lok tip that allows a reliable connection to other devices. They are also latex-free for added safety.

luer lok disposable syringe 1 ml Features

✮ Luer-Lok tip: Provides a secure connection.

✮ Clear barrel: Offers excellent visibility.

✮ Bold scale markings: Makes reading easy.

✮ Tapered plunger rod: Enables smooth aspiration.

✮ Positive plunger rod stop: Ensures precise measurements.

✮ Disposable: Designed for single-use.

✮ Latex-free: Free from latex material for safety.

luer lock disposable syringe 1cc Advantages

Secure Connection: Luer-Lok tip ensures a reliable and leak-free attachment.

Easy Reading: Clear barrel with bold scale markings for effortless dosage measurement.

Smooth Aspiration: Tapered plunger rod allows for easy and precise aspiration of liquids.

Safety: Latex-free construction reduces the risk of allergies.

Hygienic: Designed for single-use, minimizing the risk of contamination.

Versatile: Suitable for various medical procedures requiring accurate and small volume injections.

Benefits of Luer Lock Syringe

Disposable luer lock syringe provides a secure attachment between the syringe and the needle or tube throughout the entire treatment administration process.

By ensuring a proper and secure connection between the needle and the patient, disposable syringe luer lock helps to prevent any potential issues with venous lines or arteriole lines during medical procedures.

The luer lock mechanism significantly reduces the chances of the needle getting lost inside the patient's body, providing an added layer of safety during medical treatments.

Using a luer lock disposable syringe helps prevent contamination as it allows for easy cleaning of the port and enables the use of fresh, new syringes for each patient. This reduces the risk of cross-contamination between patients.

The luer lock ensures a tight and reliable fit between the connectors and the needles, which is crucial for maintaining a consistent and accurate flow of medication or fluids during medical procedures.

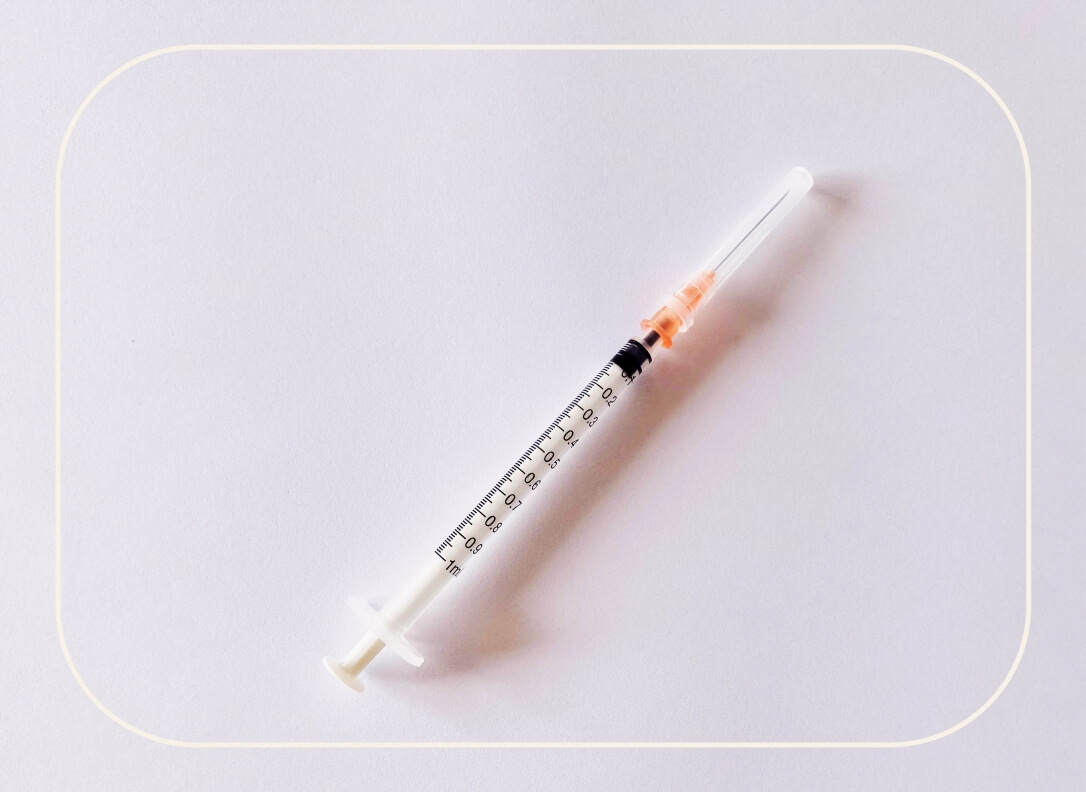

Horizon luer-slip disposable syringe 1 ml features a clear barrel with easy-to-read scale markings. The syringes have a tapered plunger rod for smooth aspiration and a Luer-Slip tip with easy needle attachment without twisting. They are also latex-free for added safety.

luer slip disposable syringe 1ml Features

✮ Luer-Slip Design: Easy needle attachment without twisting.

✮ Clear Barrel: Clear visibility for accurate dosing.

✮ Precise Scale Markings: Easy measurement of liquids.

✮ Smooth Plunger: Effortless aspiration and injection.

✮ Sterile and Disposable: Hygienic single-use design.

✮ Latex-free: Safe for individuals with latex allergies

luer slip disposable syringe 1cc Advantages

Easy to Use: Quick and simple needle attachment.

Accurate Dosage: Clear scale markings for precise dosing.

Hygienic: Prevents cross-contamination with disposable use.

Safe: Latex-free construction for allergy concerns.

Versatile: Suitable for various medical applications requiring small volumes.

Benefits of Luer Slip Syringe

Easy to use: Simple design for easy handling.

Cost-effective: Affordable compared to Luer Lock syringes.

Quick connections: Fast and convenient attachment of needles or tubing.

Suitable for low-volume applications: Ideal for procedures requiring frequent changes.

Widely available: Readily accessible in various sizes.

Reduced risk of cross-contamination: Minimizes potential for residue buildup.

Smooth fluid delivery: Ensures precise and consistent administration.

Low dead space: Minimizes drug wastage, accurate dosing.

Familiar to healthcare professionals: Commonly used and familiar tool.

Disposable options: Available as single-use for infection prevention.

Disposable syringe luer lock specifications



Item Number	203LL01	203LL02/03	203LL05	203LL10	203LL20	203LL30	203LL50/60
Item Name	Horizon Disposable Syringe Luer Lock 1ml/cc	Horizon Disposable Syringe Luer Lock 2/3ml/cc	Horizon Disposable Syringe Luer Lock 5ml/cc	Horizon Disposable Syringe Luer Lock 10ml/cc	Horizon Disposable Syringe Luer Lock 20ml/cc	Horizon Disposable Syringe Luer Lock 30ml/cc	Horizon Disposable Syringe Luer Lock 50/60ml/cc
Latex or  latex-free	Both available	Both available	Both available	Both available	Both available	Both available	Both available
Syringe Size	1ml/cc	2/3ml/cc	5ml/cc	10ml/cc	20ml/cc	30ml/cc	50/60ml/cc
Disposable	Disposable	Disposable	Disposable	Disposable	Disposable	Disposable	Disposable
With/ without needle	Both available	Both available	Both available	Both available	Both available	Both available	Both available

Disposable syringe luer slip specifications

Item Number	203LS01	203LS02/03	203LS05	203LS10	203LS20	203LS30	203LS50/60
Item Name	Horizon Disposable Syringe Luer Slip 1ml/cc	Horizon Disposable Syringe Luer Slip 2/3ml/cc	Horizon  Disposable Syringe Luer  Slip 5ml/cc	Horizon Disposable Syringe Luer Slip 10ml/cc	Horizon Disposable Syringe Luer Slip 20ml/cc	Horizon Disposable Syringe Luer Slip 30ml/cc	Horizon Disposable Syringe Luer Slip 50/60ml/cc
Latex or  latex-free	Both available	Both available	Both available	Both available	Both available	Both available	Both available
Syringe Size	1ml/cc	2/3ml/cc	5ml/cc	10ml/cc	20ml/cc	30ml/cc	50/60ml/cc
Disposable	Disposable	Disposable	Disposable	Disposable	Disposable	Disposable	Disposable
With/ without needle	Both available	Both available	Both available	Both available	Both available	Both available	Both available

Packaging Features & Advantages of Disposable Syringe



① Paper-to-plastic, PE packaging provides tamper-evident security and guarantees sterility.

②The product information sticker on the box facilitates effortless inventory control.

③Each syringe package is labeled with the lot number, manufacturer, and expiration dates.

Packaging Specifications Disposable Syringe

 Luer Slip & Luer Lock

Disposable syringe PE packing with mounted needle

Item Number	Item Name	PCS/BOX	PCS/CARTON
203LL01/203LS01	Horizon Disposable Syringe	100	3600
203LL02/03 / 203LS02/03	Horizon Disposable Syringe	100	2700
203LL05/203LS05	Horizon Disposable Syringe	100	2400
203LL10/203LS10	Horizon Disposable Syringe	100	1600
203LL20/203LS20	Horizon Disposable Syringe	50	900
203LL30/203LS30	Horizon Disposable Syringe	40	640
203LL50/60 / 203LS50/60	Horizon Disposable Syringe	25	450

Disposable syringe blister packing with byside needle

Item Number	Item Name	PCS/BOX	PCS/CARTON
203LL01/203LS01	Horizon Disposable Syringe	100	3200
203LL02/03 / 203LS02/03	Horizon Disposable Syringe	100	3000
203LL05/203LS05	Horizon Disposable Syringe	100	2400
203LL10/203LS10	Horizon Disposable Syringe	100	1600
203LL20/203LS20	Horizon Disposable Syringe	50	800
203LL30/203LS30	Horizon Disposable Syringe	40	480
203LL50/60 / 203LS50/60	Horizon Disposable Syringe	25	400

Disposable syringe soft blister packing with mounted needle

Item Number	Item Name	PCS/BOX	PCS/CARTON
203LL01/203LS01	Horizon Disposable Syringe	100	3200
203LL02/03 / 203LS02/03	Horizon Disposable Syringe	100	2400
203LL05/203LS05	Horizon Disposable Syringe	100	1800
203LL10/203LS10	Horizon Disposable Syringe	100	1200
203LL20/203LS20	Horizon Disposable Syringe	50	800
203LL30/203LS30	Horizon Disposable Syringe	40	400
203LL50/60 / 203LS50/60	Horizon Disposable Syringe	25	400

Disposable syringe sterilization

Disposable syringes are typically pre-sterilized before they are ready for use. Sterilization is a crucial process that ensures the syringes are free from harmful microorganisms, making them safe for medical procedures.

There are different methods, disposable syringe can be sterilized by :

Ethylene Oxide (ETO) Sterilization: Syringes are exposed to ethylene oxide gas, which penetrates the packaging and kills bacteria, viruses, and other microorganisms. After sterilization, the gas is removed, leaving the syringes safe for use. As one of the disposable syringe factories, we use Ethylene Oxide (ETO) Sterilization.

Gamma Radiation: Syringes are exposed to gamma radiation, which destroys the DNA of microorganisms, rendering them unable to reproduce and cause infections.

Steam Sterilization: This method, also known as autoclaving, involves exposing the syringes to high-pressure steam at a specific temperature and time. The steam kills microorganisms and spores, ensuring sterilization.

Regardless of the method used, the aim is to make sure the syringes are free from any potential pathogens that could harm patients during medical procedures. Proper sterilization is essential to maintain aseptic conditions and prevent the spread of infections.

Disposable syringe production line

Product Leaflets

Luer Lock Disposable Syringe with or without NeedleLuer Lock Disposable Syringe with or without Needle.pdf

Luer Slip Disposable Syringe with or without NeedleLuer Slip Disposable Syringe with or without Needle.pdf

Luer Lock, Slip Disposable Syringe with or without NeedleLuer Lock, Slip Disposable Syringe with or without Needle.pdf

FAQ

❓ 1. What is the use of disposable syringe?

Disposable syringe uses in medical and healthcare settings. Some common applications include:

Vaccinations: Disposable syringe is used to administer vaccines, helping protect individuals from various infectious diseases. As a disposable syringe manufacturer, we supply disposable syringe with various sizes.

Injections: Disposable syringe is used to deliver medications, such as antibiotics, insulin, and other treatments directly into the body. As a disposable syringe manufacturing unit, we can provide customized disposable injection syringe.

Blood Draw: Healthcare professionals use disposable syringe to draw blood samples for laboratory testing and diagnostic purposes. We are disposable injection syringe manufacturer, please feel free to get the wholesale disposable syringe pricelist from us.

IV (Intravenous) Fluid Administration: Disposable syringe is used to administer fluids and medications directly into the bloodstream through intravenous lines. We are one of the ce certification disposable syringe factories, please contact us for the disposable syringe wholesale price.

Dental Procedures: Dentists use disposable syringe for local anesthesia and other dental treatments. If you are searching for disposable syringe online of if you are a disposable syringe distributor, we will be your best choice.

Animal Healthcare: Veterinary professionals use disposable syringes to administer medications and vaccinations to animals.

Diabetes Management: Diabetic patients use disposable syringes to inject insulin as part of their daily self-care routine. We are also one of the disposable insulin syringe suppliers, we can supply oem disposable insulin syringe.

Allergy Shots: In the case of allergy treatments, disposable syringes are used to deliver allergy shots. As one of the leading disposable syringe manufacturers in China, we can provide customized disposable syringe luer lock and luer slip.

Disposable syringes are preferred in many situations because they are sterile, convenient, and designed for single-use, reducing the risk of infection transmission. After use, they should be disposed of safely, following proper medical waste disposal guidelines.

❓ 2. What is the disposable syringe manufacturing process?

As one of the disposable syringe manufacturers, the disposable syringe manufacturing process in our manufacturing plant typically involves the following steps:

Injection Molding: The main body of the syringe, known as the barrel, is created using injection molding. In this process, liquid plastic is injected into a mold cavity and then cooled and solidified to form the barrel's shape.

Piston and Plunger Production: The piston, which is the movable rod inside the barrel, and the plunger, which fits into the barrel, are usually made of rubber or synthetic materials. They are created separately and then assembled later in the process.

Needle Attachment: The needle is usually made of stainless steel and is attached to the front end of the syringe. This step involves securely connecting the needle to the syringe barrel.

Barrel Printing: The printing is done to provide important details, such as volume measurements, dosage units, brand name, and other relevant information.

Various methods for barrel printing

Pad Printing: This process involves using a silicone pad to transfer ink from an etched plate to the surface of the syringe barrel. It is suitable for printing small and intricate designs.

Screen Printing: In this method, a stencil with the desired design is placed on the syringe barrel, and ink is forced through the stencil onto the surface using a squeegee.

Hot Foil Printing: With this technique, a heated metal plate or foil is pressed against the barrel surface, transferring ink from the foil to create a shiny and durable print.

In-Mold Labeling (IML): In this approach, labels with the required information are inserted into the mold before the syringe barrel is formed. The labels become an integral part of the barrel during the molding process.

To be a disposable injection syringe supplier, we use Pad Printing and Screen Printing in our own manufacturing factory.

Assembly: The piston and plunger are placed inside the barrel, and the syringe is assembled. Sometimes, additional components like safety caps or Luer lock tips are also added at this stage.

Packaging: The disposable syringe is usually packed in individual sterile packages or in bulk quantities for medical facilities.

Sterilization: To ensure the syringes are free from harmful microorganisms, they undergo sterilization using methods like ethylene oxide (ETO) gas or gamma radiation.

The manufacturing process is conducted with strict quality control measures to ensure that the disposable syringes are safe, reliable, and free from defects. These disposable syringes are then distributed to hospitals, clinics, pharmacies, and other healthcare facilities for use in various medical procedures.

❓ 3. How to use disposable syringe ?

Using a disposable syringe is a simple process. Here's a step-by-step guide:

Wash Hands: Before handling the syringe, make sure to wash your hands thoroughly with soap and water to maintain hygiene.

Inspect the Syringe: Check the packaging for any damage or signs of tampering. If the packaging is intact, the syringe should be sterile and safe to use.

Remove Cap: Take off the protective cap from the needle by pulling it straight off. Be careful not to touch the needle to avoid accidental pricks.

Draw Medication (if required): If you need to draw medication from a vial or ampoule, follow these steps:

a. Pull back the plunger to the desired volume on the barrel. This creates a vacuum inside the syringe.

b. Insert the needle into the vial or ampoule's rubber stopper.

c. Push the plunger down slowly to draw the medication into the syringe. Make sure you have the correct dosage.

Expel Air Bubbles: If there are air bubbles in the syringe, gently tap the barrel to move them to the top. Then, slowly push the plunger until a tiny drop of liquid appears at the needle tip, removing any air trapped inside.

Choose Injection Site: If you're administering an injection, choose the appropriate injection site as instructed by a healthcare professional.

Clean the Injection Site (if required): If needed, clean the injection site with an alcohol swab and let it dry before proceeding.

Administer the Injection: Hold the syringe like a pen with one hand and use the other hand to stabilize the skin around the injection site. Insert the needle smoothly and at the correct angle (usually 90 degrees for intramuscular injections and 45 degrees for subcutaneous injections). Slowly push the plunger to deliver the medication.

Withdraw the Needle: After the injection, withdraw the needle carefully and immediately dispose of the used syringe in a proper medical waste container. Never recap the needle.

Wash Hands Again: Finally, wash your hands once more to ensure proper hygiene.

Remember, if you're not comfortable or familiar with using a disposable syringe, always seek assistance from a trained healthcare professional. Improper use of syringes can be hazardous and cause injury or infections.
